Price review Ulincos Momentary Push Button Switch U19A1 1NO SPST Silver Stainless Steel Shell Suitable for 19mm 3/4 Mounting Hole
So you can check out the other reviews One-Day Sale: Up to 60% Off Ulincos Momentary Push Button Switch U19A1 1NO SPST Silver Stainless Steel Shell Suitable for 19mm 3/4 Mounting Hole at Amazon.com
only with $
| Lift Type | ON-NONE-OFF |
| Current Rating | 3 Amps |
| Operating Voltage | 12 Volts |
| Contact Type | Normally Open |
| Connector Type | Solder, Screw |
| Brand | Ulincos |
| Switch Type | SPST, Metal, Push Button Switch |
| Terminal | Spst |
| Material | Stainless Steel |
| Mounting Type | Panel Mount |
- Momentary switch: Push & Hold,ON; Release,OFF
- Metal shell,100% brand new and high quality,mechanical life for 500,000 cycles
- Easy to install, it has non-solder connections,screw-type terminals to make fitting very easy
- These terminal holes size are 2.1mm (5/64") diameter, you can use AWG 12 wire maximum; popular size of AWG 14 to 18 are fine also
- Universal fit all 12V Car SUV truck conversion Van RV Boat Yatch.Great for electromagnetic starter, relay, Horn Button Switch, PC Power Switch or any circuit controls
Product Description
What You Get:
1 * pushbutton switch
1 * wiring instruction
What's the Pushbutton Switch:

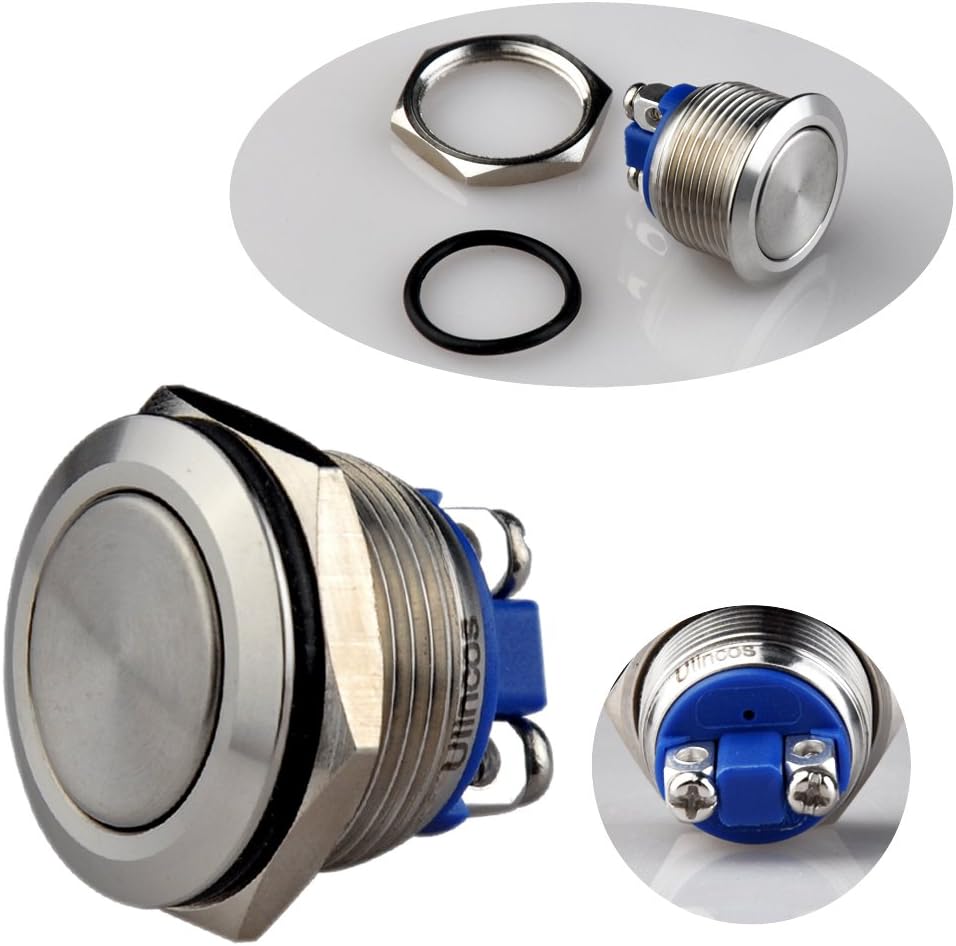

This is a perfect choice if you are in need of a rugged push button! These metal push buttons are a very tough, small, panel-mount momentary switch. It is a SPST with 19mm threading and 1mm pitch. Overall length (including leads) is 0.8"" and has screw-type terminals for connection. These momentary buttons are rated up to 3A and 250VAC.
What's the Momentary Switch:
Momentary switch, normally open, remain in ON state as long as being pressed.
What's the Momentary Switch Used for:
Most often momentary switches are used for circuits control in electromagnetic starter; stuff like relay, Horn Button Switch, PC Power Switch or any circuit controls.
What's Note:
These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water.
What's the Customer Support:
If you have any questions, feel free to contact us by E-mail any time.We get professional customer service staff and technician to help you.
Specifications:
Thread depth: 2/5" (10mm)
Head diameter: 7/8" (22mm)
Button diameter: 0.6" (15mm)
Mounting hole size: 3/4" (19mm)
Depth inc contacts: 0.8" (20mm)
Switch combination: 1NO
Operation types: Momentary
Switch rating: 3A/250VAC, 3A/30VDC
Head shape : Flat
Enclosure material : Stainless Steel
Operation pressure: about 4N
Protection level: IP65,IK08
Mechanical life: 500,000 cycles
----------------------------
